Mifare RC522 is the high integrated RFID card reader which works on non-contact 13.56mhz communication, is designed by NXP as a low power consumption, low cost and compact size read and write chip, is the best choice in the development of smart meters and portable hand-held devices.

MF RC522 use the advanced modulation system, fully integrated at 13.56MHz with all kinds of positive non-contact communication protocols. Support 14443A compatible answer signal. DSP deal with ISO14443A frames and error correction. MFRC522 support Mifare series higher speed non-contact communication, duplex communication speed up to 424 kb/s. As a new family member in 13.56MHz RFID family, MF RC522 has many similarities to MF RC5200 and MF RC530, and also has more new features.

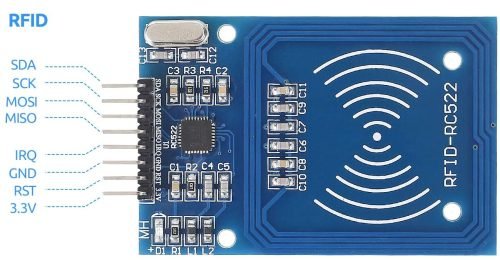

This module can fit directly in hand held devices for mass production. Module use 3.3V power supply, and can communicate directly with any CPU board by connecting through SPI protocol, which ensure reliable work, high reading distance.

Specification

  • Module Name:MF522-ED
  • Working current:13 – 26mA / DC 3.3V
  • Standby current:10 – 13mA / DC 3.3V
  • Sleep current:<80uA
  • Peak current:<30mA
  • Working frequency:13.56MHz
  • Card reading distance :0~60mm (Mifare1 card)
  • Protocol:SPI
  • Data communication speed:10Mbit/s Max.
  • Card types supported: Mifare1  S50, Mifare1 S70, Mifare UltraLight, Mifare Pro, Mifare Desfire, Mifare classic
  • Dimension:40mm × 60mm
  • Working temperature:-20—80 degree
  • Storage temperature:-40—85 degree
  • Humidity:relevant humidity 5%—95%



Packing List:

x1 unit RC522 board

x1 unit 13.56MHz Key tag

x1 unit  13.56MHz Card

x1 unit  straight header pin

x1 unit  right angle header pin
