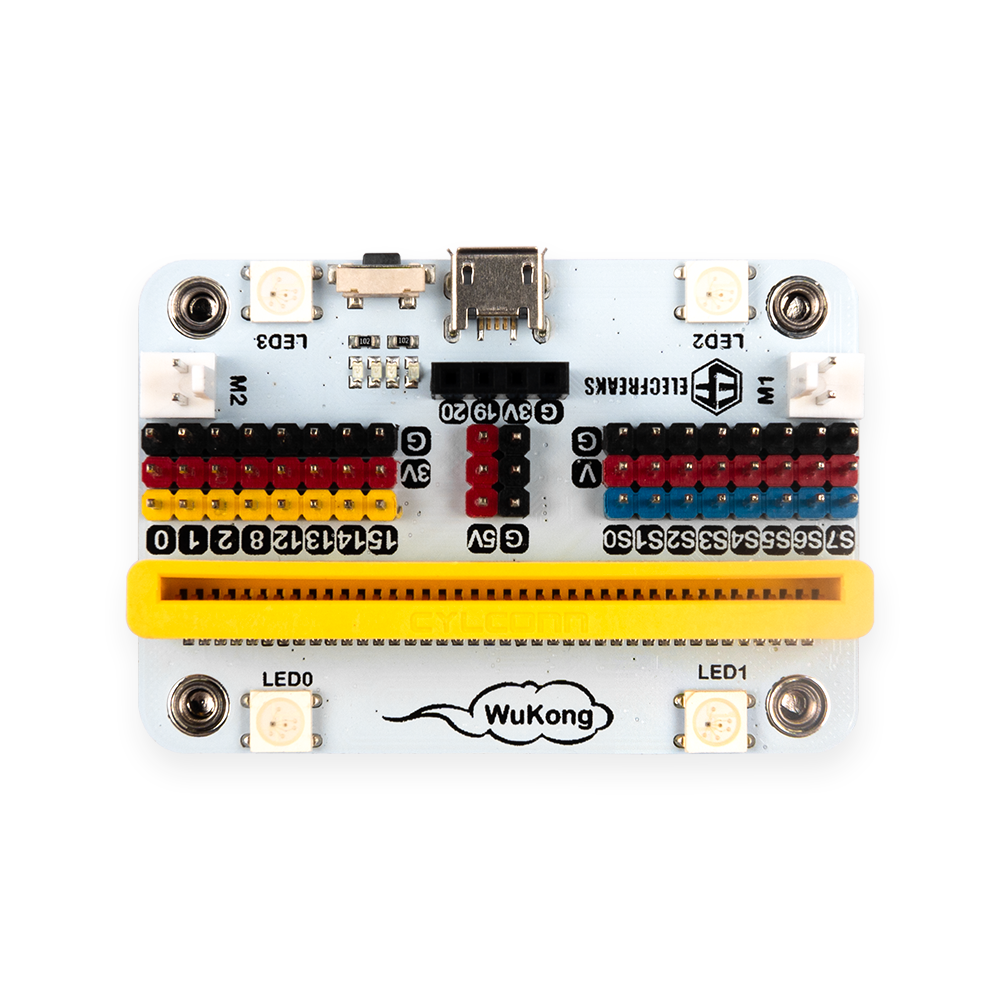

ELECFREAKS micro:bit Wukong Expansion Board
Description
Wukong is a high integrated breakout board with multiple functions based on micro:bit, which has a similar size with the micro:bit with buzzer, servo and motor drivers on board. With a built-in 400mAh Li-ion battery pack and the on-board power controlling system, it supports fast charge with only 20 minutes for full filling that can operate for more than 40 minutes a time. The base board designs with standard 7×5 square bricks that can adapt perfectly to Lego.
Details

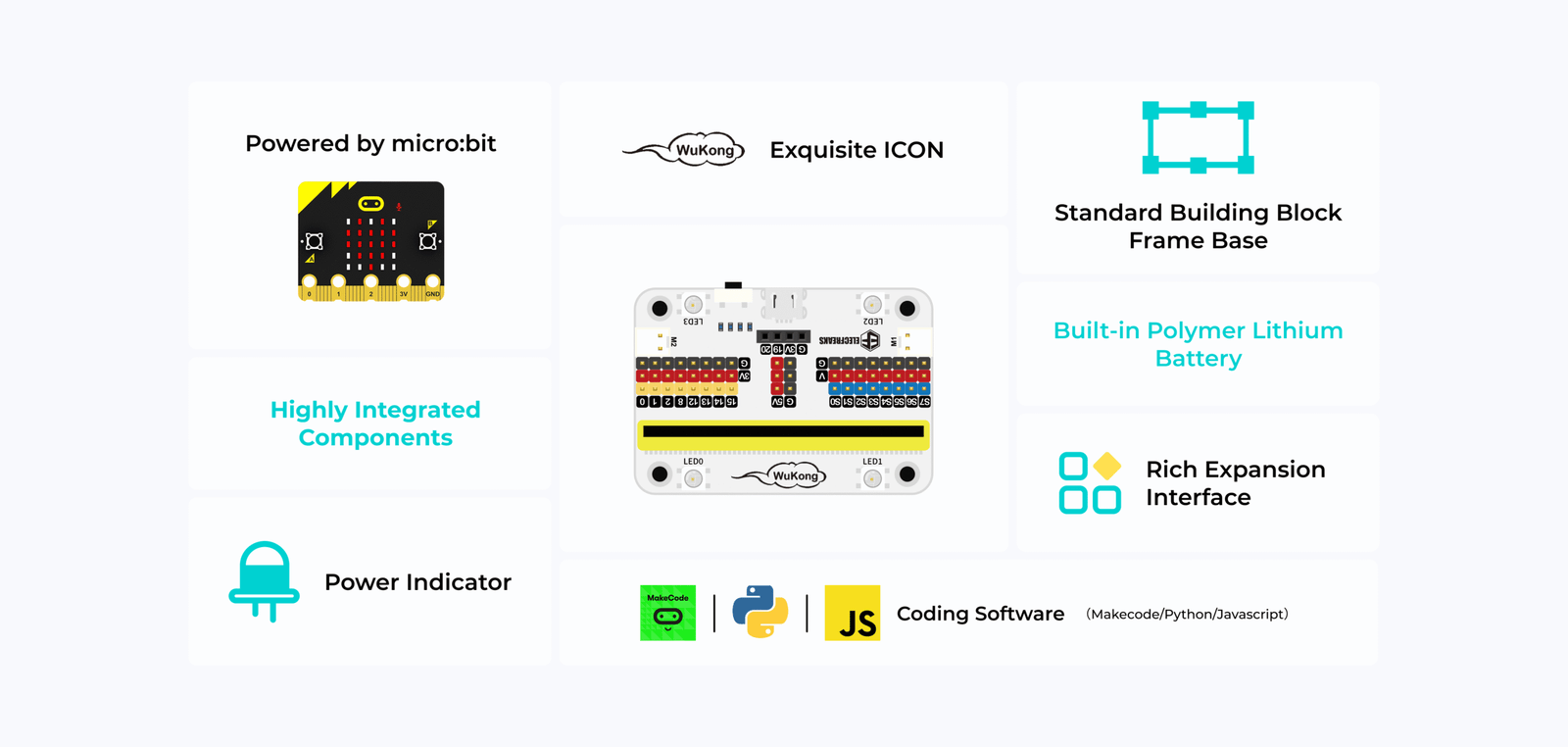

Wukong Breakout Board: Reliable Power & Versatile Expansion

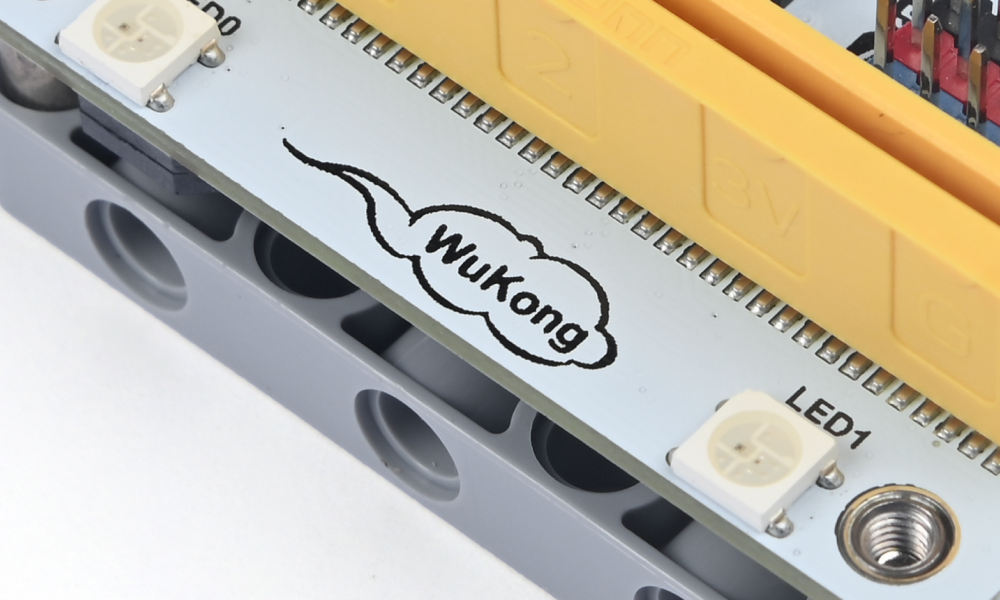

Exquisite ICON
The Wukong Breakout Board features a unique icon, and clear silkscreen printing.

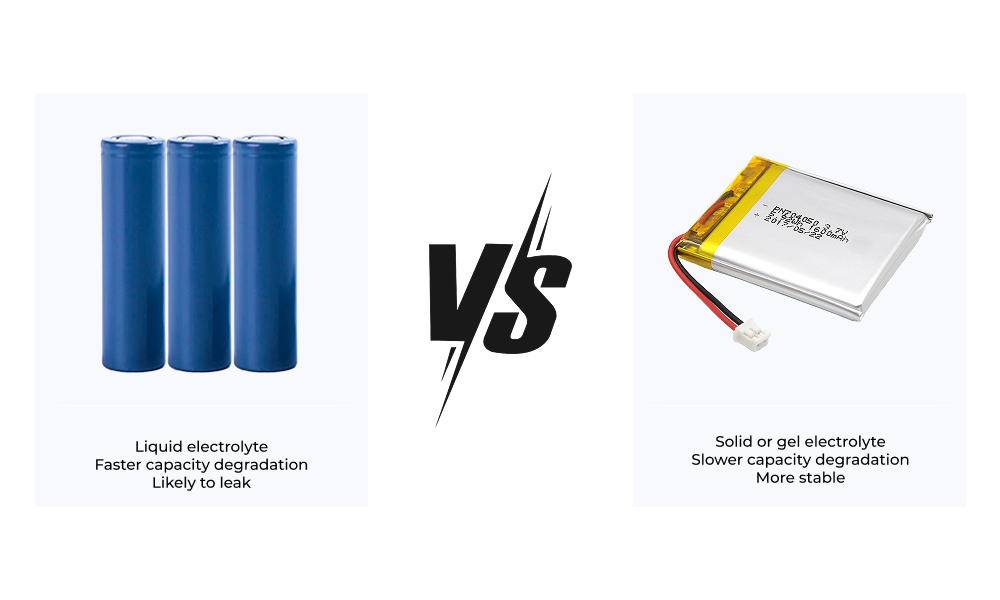

Lithium Polymer Battery is Safer
The onboard lithium battery is more convenient to use. The 400mah polymer lithium battery has sufficient power, stable discharge, long service life, and is safe and explosion-proof.

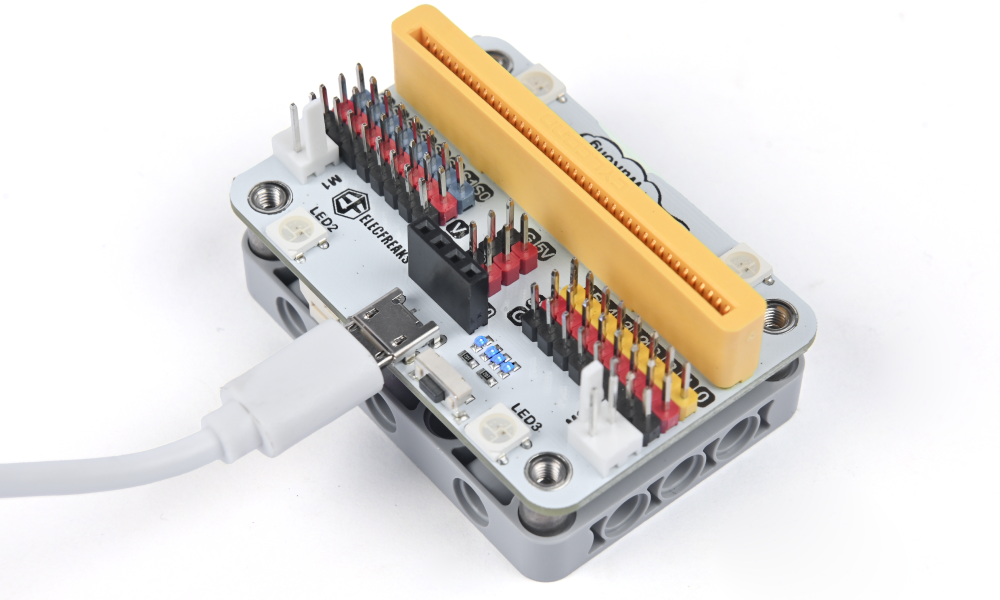

Durable Power On/Off Style
Press once to turn it on, and press twice to turn it off. It is more durable than a toggle switch.

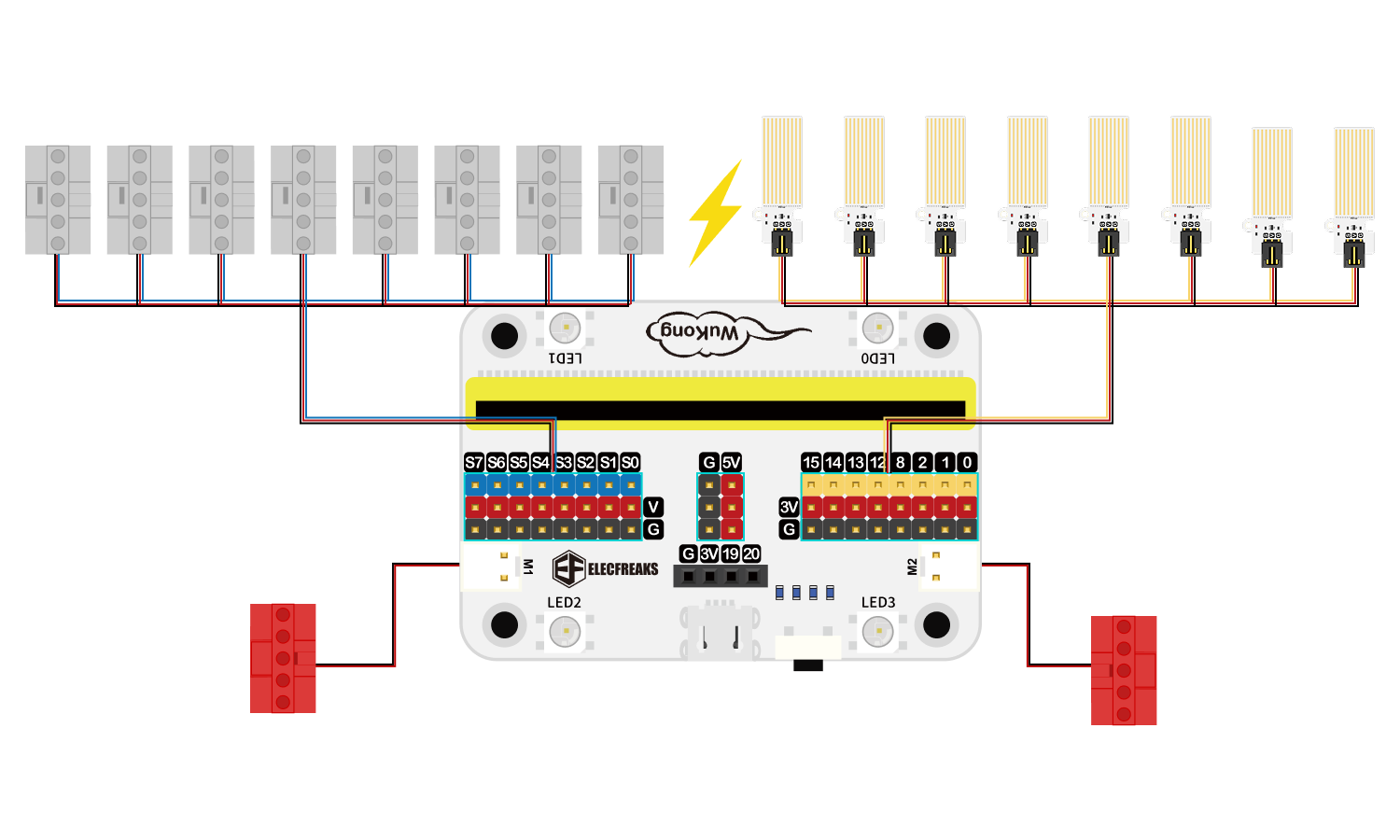

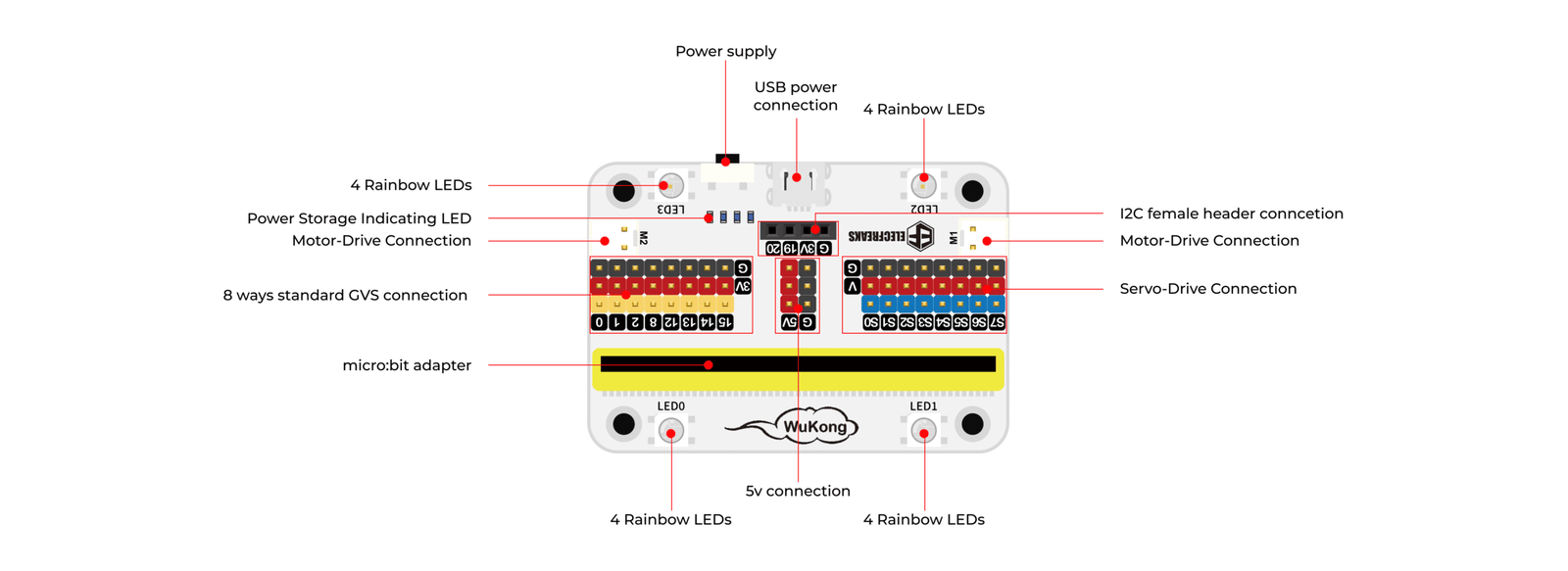

Rich Expansion Interface
There are 19 interfaces available on the Wukong Breakout Board that can be used to expand and connect various sensors and servos.
Power Indicator
Wukong Breakout Board has four LEDs that indicate the power storage.

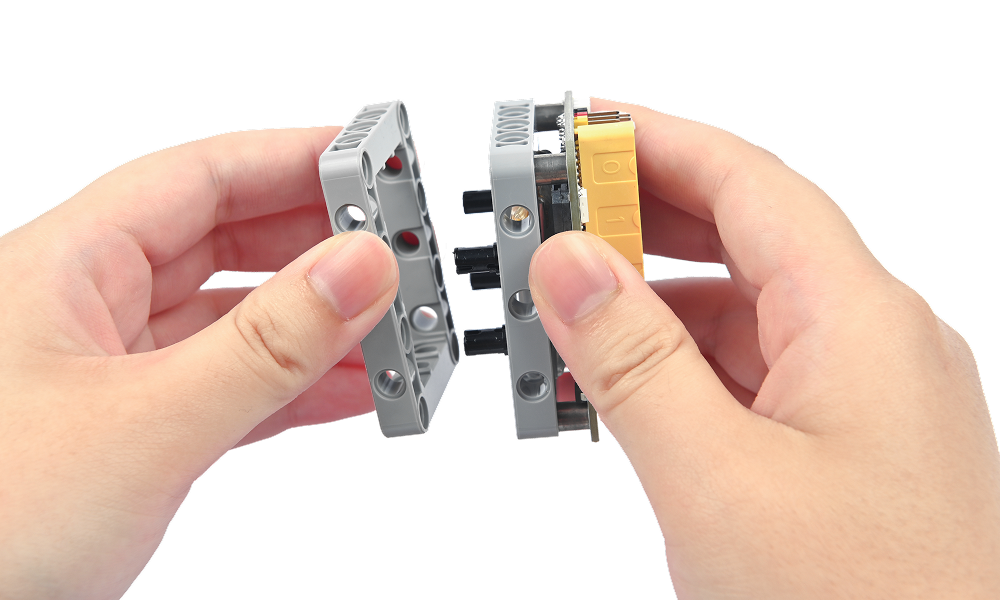

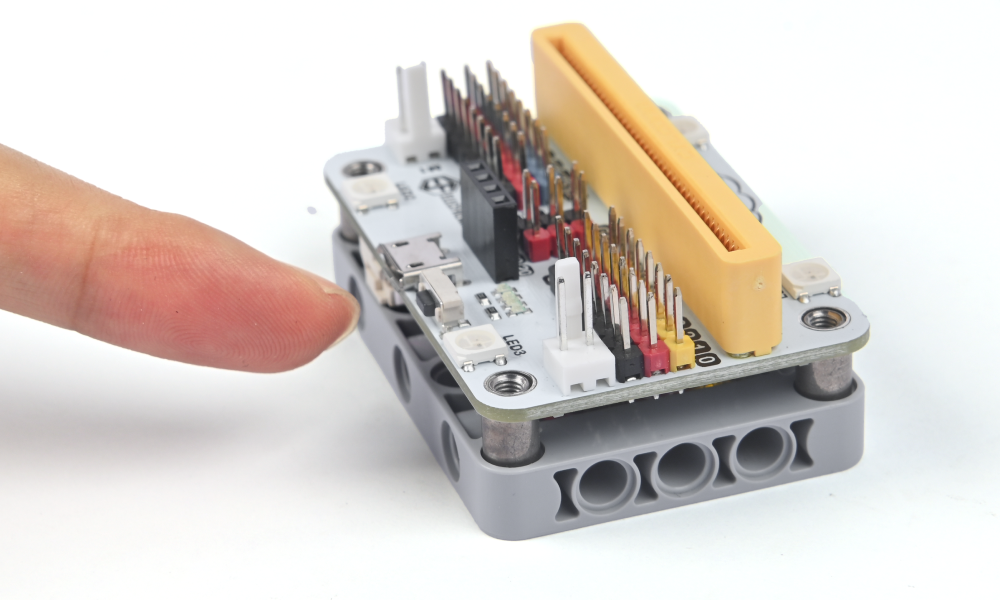

Optimized 7×5 Base for Block Expansion
Wukong Breakout Board comes with a 7*5 building block base, which is more convenient for building blocks to build and expand.

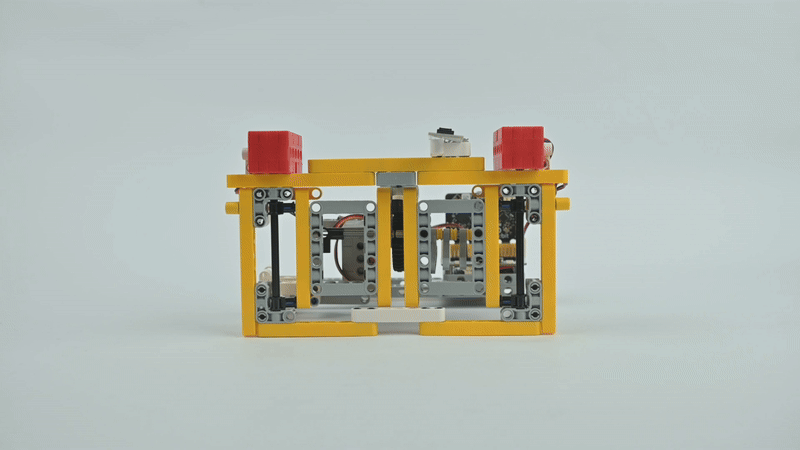

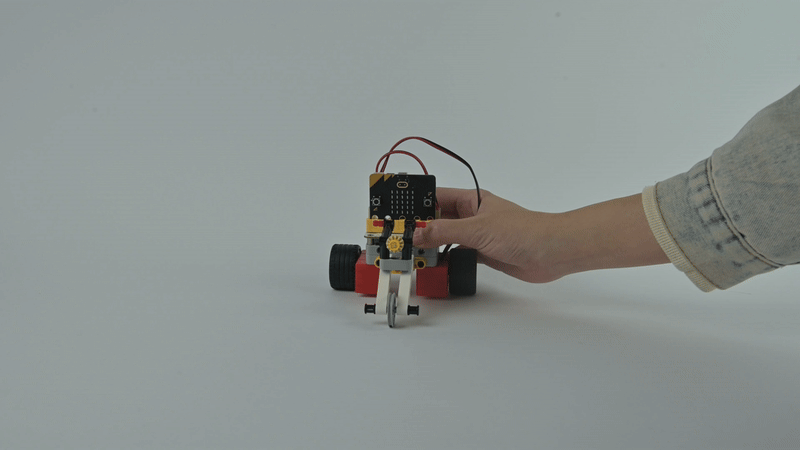

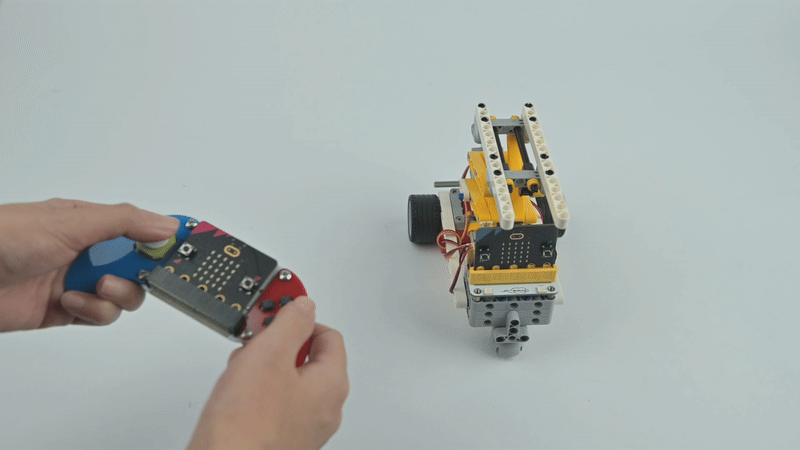

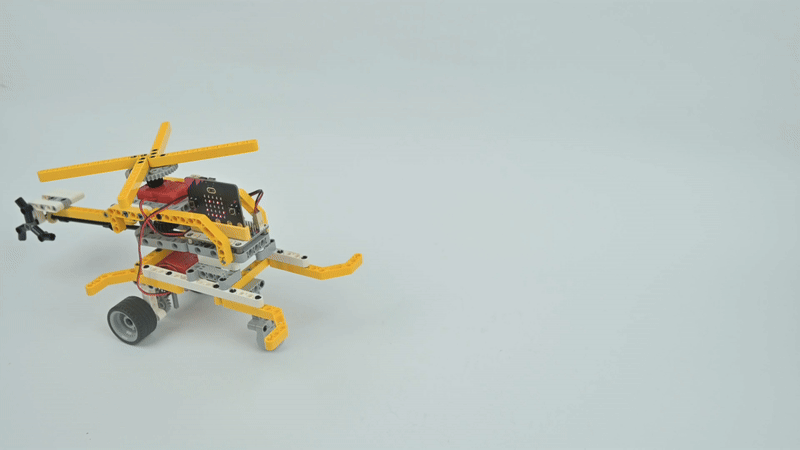

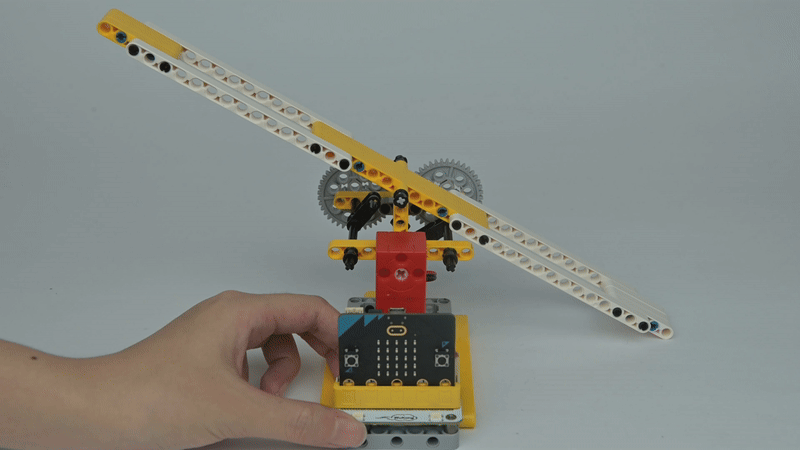

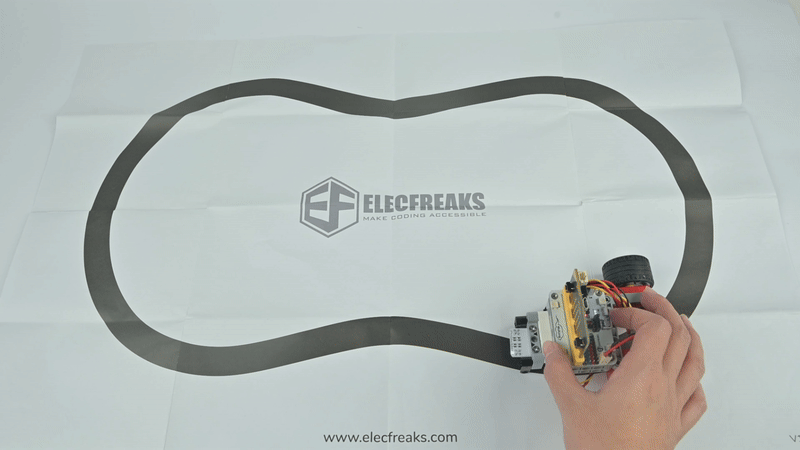

Applications
Specifications
| Size: | 40.00 X58.12X24.53 mm |
| Weight: | 41.6g |
| Power Switch: | Click once to turn on, double-click to turn off |
| Battery: | 400mAh Li-ion battery pack |
| Working Voltage: | 3.7V~5V |
| Working Temperature: | -20℃~60℃ |
| IO Port Lead Out: | P0, P1, P2, P8, P12, P13, P14, P15, IIC |
| Rainbow LED: | LED0, LED1, LED2, LED3 |
| Buzzer: | Passive buzzer with a switch on board |
| LED: | 8 LEDs can be programmed on the base side |
