Overview

The ESP32 38-Pin Development Board is a highly versatile and powerful solution for your IoT and embedded projects. Featuring dual-core processing, 4MB of flash memory, and integrated WiFi and Bluetooth capabilities, this development board is designed to handle complex applications with ease. Its ultra-low power consumption makes it ideal for battery-powered projects. The built-in CP2102 USB-to-UART bridge provides seamless connectivity and easy programming.

Features:

• Dual Core Processing Handles complex tasks efficiently with two high-performance cores
• WiFi and Bluetooth Integrated connectivity for versatile wireless applications
• Ultra-Low Power Consumption Ideal for battery-operated projects with various power-saving modes
• CP2102 USB-to-UART Bridge Ensures easy programming and debugging
• Rich Peripheral Interfaces Supports multiple communication protocols and interfaces
• High Memory Capacity 4MB flash memory for extensive program storage

Technical Specifications:

• Microcontroller: ESP32
• Module: ESP32-WROOM-32 (ESP32-D0WD-V3)
• CPU: Dual-core Xtensa LX6, up to 240 MHz
• Memory: 520KB SRAM, 4MB flash
• 520KB SRAM, 4MB flash
• Supply voltage: 5 V – with microUSB
• Current consumption: approx. 80 mA
• Flash Memory: 4MB

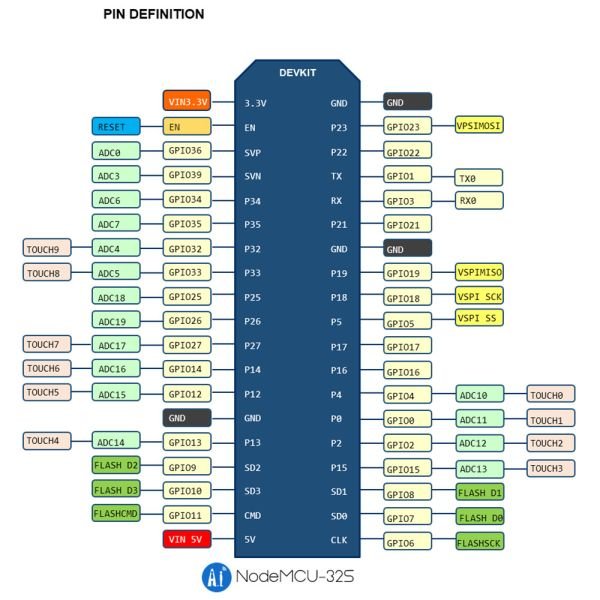

• Pins: 38 pins
• Connectivity: WiFi 802.11 b/g/n and Bluetooth 4.2 BLE
• USB Interface: CP2102 USB-to-UART bridge
• Operating Voltage: 3.3V
• Power Consumption: Ultra-low power consumption in various modes
• Clock Speed: Up to 240 MHz
• ADC/DAC: 12-bit ADC, 8-bit DAC
• PWM: Pulse Width Modulation support
• Interfaces: SPI, I2C, UART, I2S, and more
• Connector: MicroUSB
• 2 buttons: Enable and Boot
• Board Dimensions (L x W): 48x 26mm

`

Applications:

• IoT (Internet of Things) devices.
• Smart home automation.
• Wearable technology.
• Wireless sensor networks.
• Robotics and control systems.
• Data logging and monitoring.

Package Include:

x1 unit ESP32 Development Board 38-Pin
