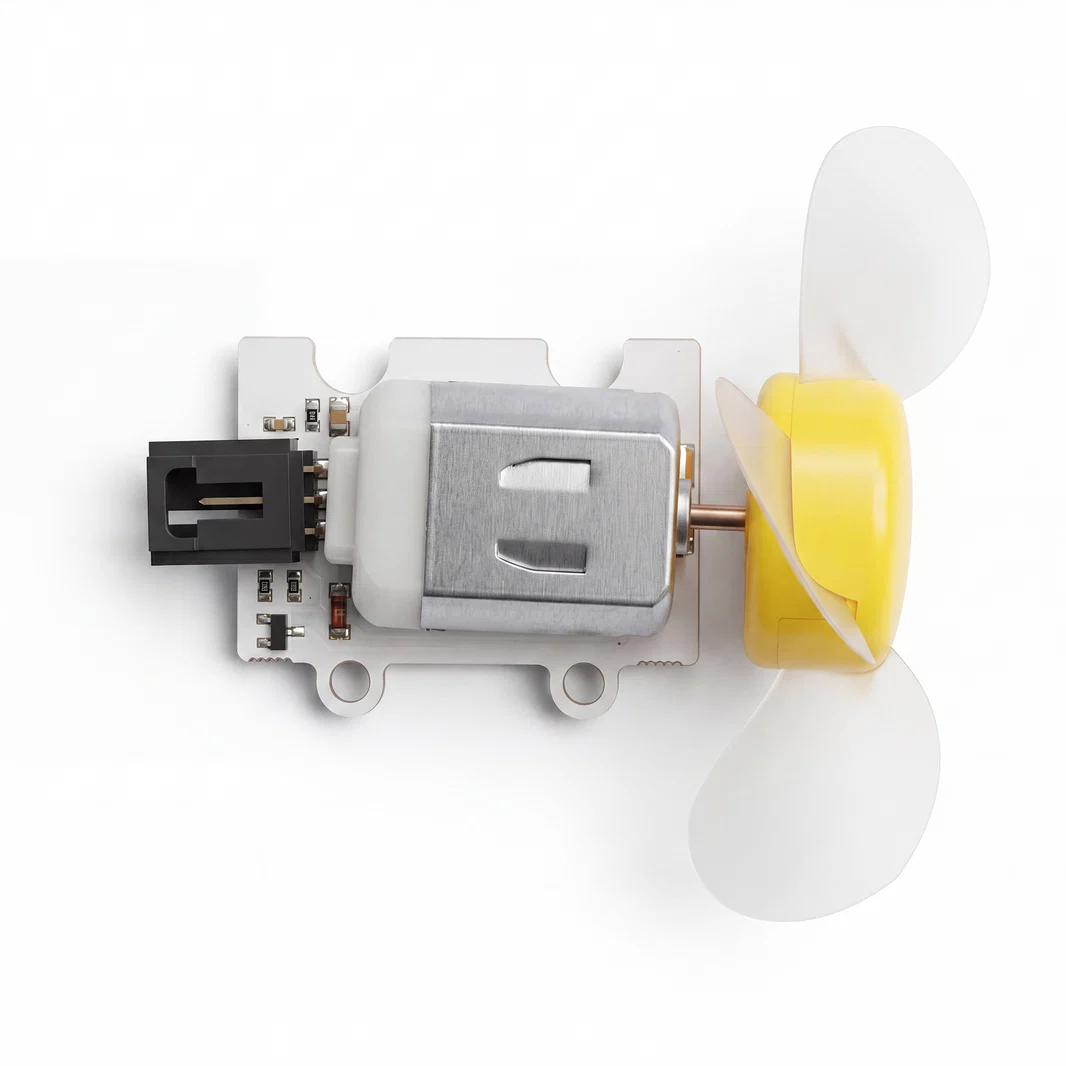

OCTOPUS Motor Brick is a type of simple electronic building blocks of the fan motor drive module, it can be used as simple Arduino teaching demo, convenient for Arduino beginners to learn.

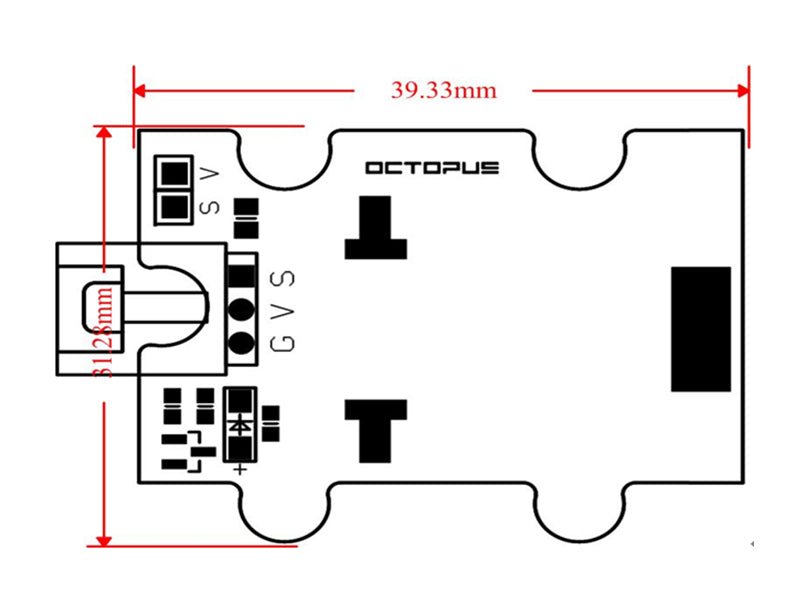

DIMENSION

FEATURES

Power supply 5V
N-MOS IRLML2502TRPBF with high current driving capability
low-power fan motor
Working current 120mA
Working temperature -25 ~ 85
Size 39.33mm×31.28mm

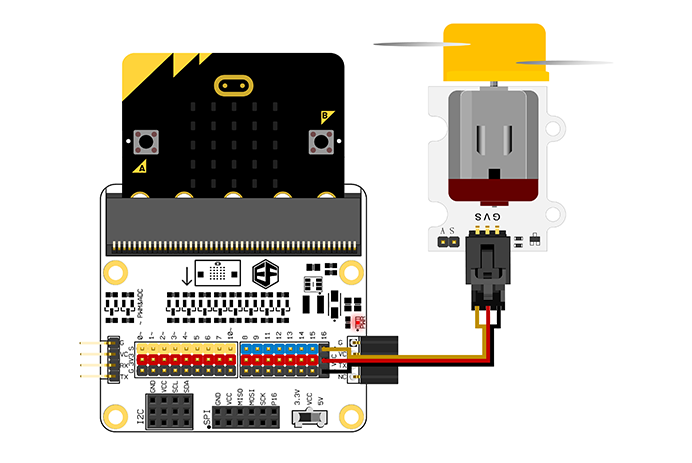

HARDWARE CONNECTION

Connection note: Connect this module to the P16 port on OCTOPUS:BIT, insert the micro:bit board into the OCTOPUS:BIT and slide the switch to 5V.
